Attach external documents to SD Documents

Requirement: Attached external files (Word/PDF/xls) to SD related documents like Customers, Sales Orders, Deliveries or Billing Documents.

Pre-requisite: Use TCode SU3 to assign and set parameter ID SD_SWU_ACTIVE to X.

SD_SWU_ACTIVE

Solution: There are two ways to navigate in the Document screen and see screens below to attach files and note that the file can only be attached in the Change Display mode and NOT in Create mode.

Option-1

Option-2

Regards

[V]

Product Allocation : Product allocation check found changes to the confirmation

Issue :  Product allocation check found changes to the confirmation and the confirmation quantity is 'Zero'.

Solution : This issue occurs if a custom info structure is created with characteristics other than that of the standard product allocation structure S140. In such case, program User_Exit FV45VFZY, Include  USEREXIT_QUOTA_KEY_VALUE to pass custom characteristics from LIS to be filled and pass to internal LIS structure.

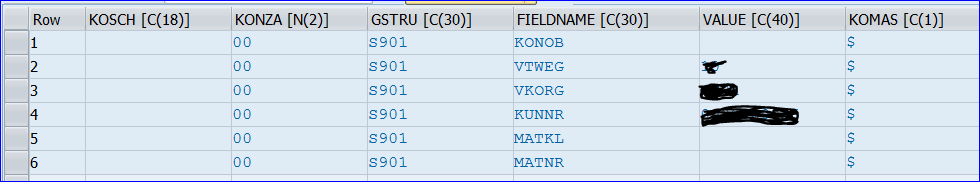

I have a Custom info structure created and notice from the above debug screen that the Material group and Material number fields are not filled. With appropriate code in place fill the custom fields to pass data to MCVBAP (LIS Item level info structure). The data from  these structures performs a check against the SXXX structure maintained for product allocation and confirms the quantities.

S4 HANA Customer Master Sales Area Data - Changes to BP are not saved

Issue

Changes to BP are not not saved when we extend the BP data to Sales Area even though you see the message "Changes have been saved" without any other error message. However, if you open the BP again, you will notice that the changes actually are not saved to database.

Cause

What I noticed is that if there are some mandatory fields that are required to save the data, but there are no errors are displayed during the 'Save' of the document.

Resolution

1. Execute TCode MDS_PPO2.

2. Input the Technical Creation date (date you actually performed the changes) in the selection screen.

3. Check if there is any error in the PPO log. If there is error, please correct them then perform the change on BP again.

Source : SAP

Service Order Material Bill of Material Explosion - Components Tab (IW31/IW32)

Requirement:

• Display the list of components required/relevant for an equipment in a repair service Order

Solution:

• Use TCode CS01 to create a Bill of Material with Usage-4 (Plant Maintenance).
• During the creation of the Service Order (IW31/IW32), Click the 'Operations' Tab, and then click the General tab and bottom left of the screen.
• Enter the BOM material created from CS01 in the 'Assembly' field and hit Enter.
• Click the 'Assembly' Icon to the bottom of the Screen.
